Live Video Broadcast and Mixing in Azure with Teams

In media broadcasting, with a continued focus on moving production to the cloud, the idea of virtual production control rooms are taking root. A production control room is the place were incoming feeds are combined together and the outgoing program is created. Virtualizing this brings several key benefits:

  • Ability to scale up and down as needed for live events - no need for expensive investment in hardware up front
  • Enabling a remote workforce - important for geographically dispersed production
  • Increased productivity since you can now potentially produce multiple events per day without the need to go from venue to venue.

I want to demonstrate how easy it is to setup a simple virtual production control room in Azure. We will keep it simple, using vMix as our mixer and Microsoft Teams for capturing video feeds locally and sharing video via NDI to the master control in Azure. The setup is simple to demonstrate the capabilities but can easily be adjusted to accomodate more traditional broadcasting workflows.

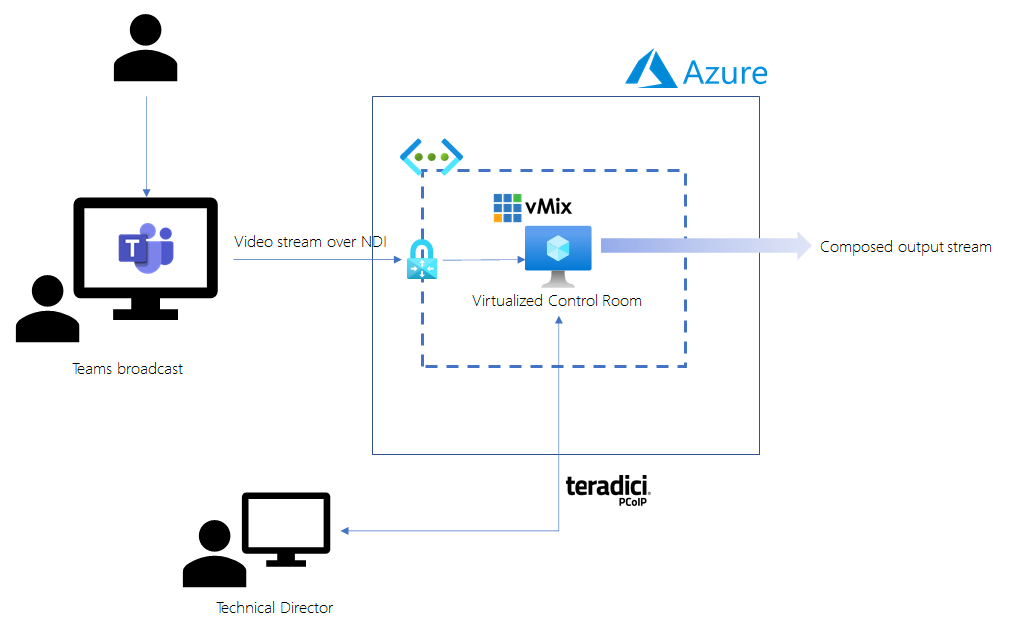

virtual control room architecture

Virtual Production Control Room Architecture

The core components in Azure will be a virtual network and a GPU-based Virtual Machine. In addition, you will want to set up a private network connection to your location where you will be interviewing via Teams - this will allow a secure way to capture the Teams video feeds via NDI.

We will use Teradici to remotely access the vMix platform. Teradici provides a low latency remote desktop protocol (PCoIP) which is perfect for video scenarios like mixing that require minimal latency to ensure great user experience and the ability for editors to handle programming for live scenarios.

Finally, we want to be able to capture high-quality individual video streams from 2 or more participants from a Teams call. Imagine a live interview being conducted as a scenario where this is applicable. In order to do this, we will be using NDI within Teams to broadcast the streams to our mixer in Azure.

NDI is a protocol, developed by NewTek that enable video-compatible products to communicate, deliver, and receive high-definition video over a computer network in a high-quality, low-latency manner that is frame-accurate and suitable for switching in a live production environment.

The steps to create this in Azure is as follows:

  1. Create a NV series machine with Windows 2019 – ideally a Standard_NV12s_v3.
  2. Install on this VM the folllowing:
  3. Now you will need setup a private connection from the Azure VNet to your local site where Teams will be running. This could be an ExpressRoute. For this scenario, you can simply set up a Point to Site VPN by following this guide. This will create a private channel to enable capturing NDI streams in vMix running in your virtual production control room.
  4. You will need to enable the following ports in Azure to allow NDI to work: 5960-65535, 5353 and the following ports for Teradici: 4172, 60443
  5. You need to enable NDI in Teams. Once it is enabled you can then start your interview call in Teams and turn on NDI Broadcast. This will start to broadcast the video streams using NDI.

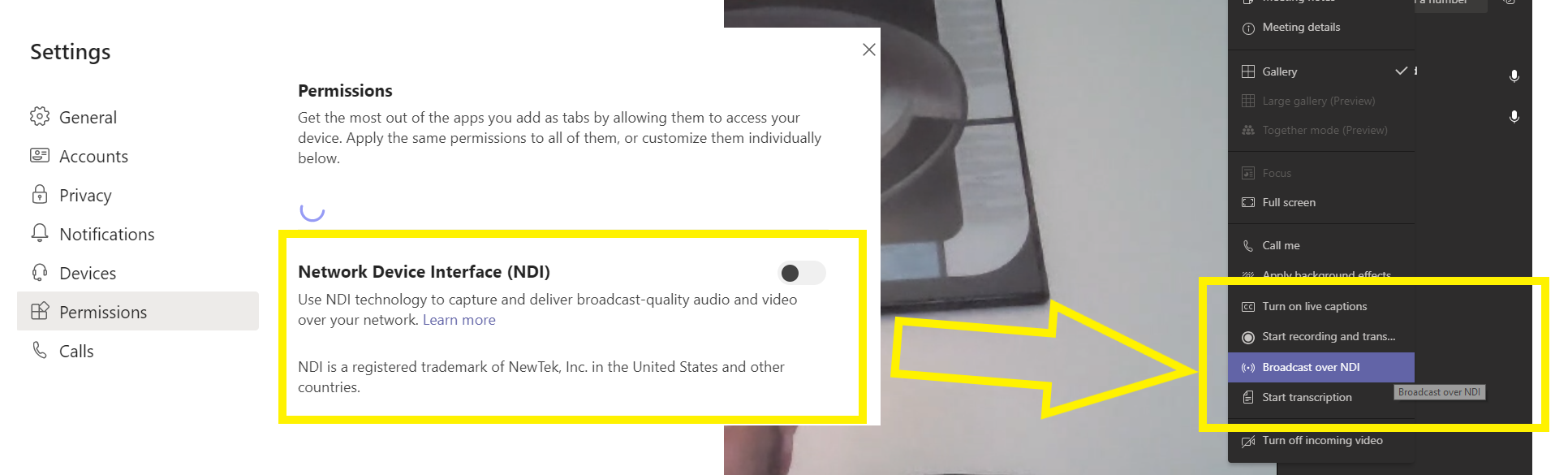

NDI in teams

Enable NDI in Teams

  1. You can now connect to your Azure VM using the Teradici PCoIP client.
  2. Once connected, open vMix and add input as NDI – you should see the Teams video streams available to add.

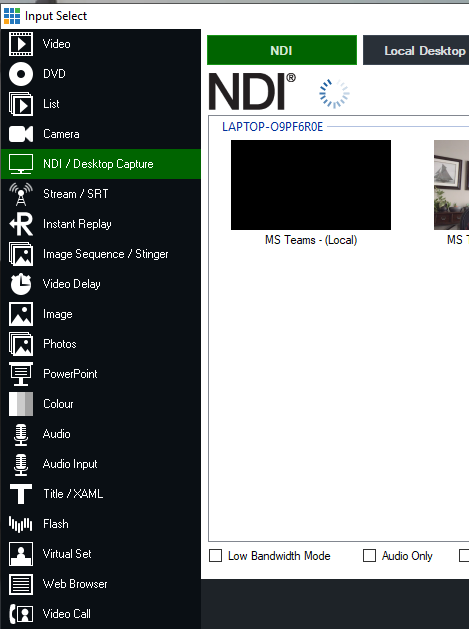

NDI in vMix

Capture NDI in vMix

  1. At this point you can now mix these together in vMix and create a live output to send downstream.

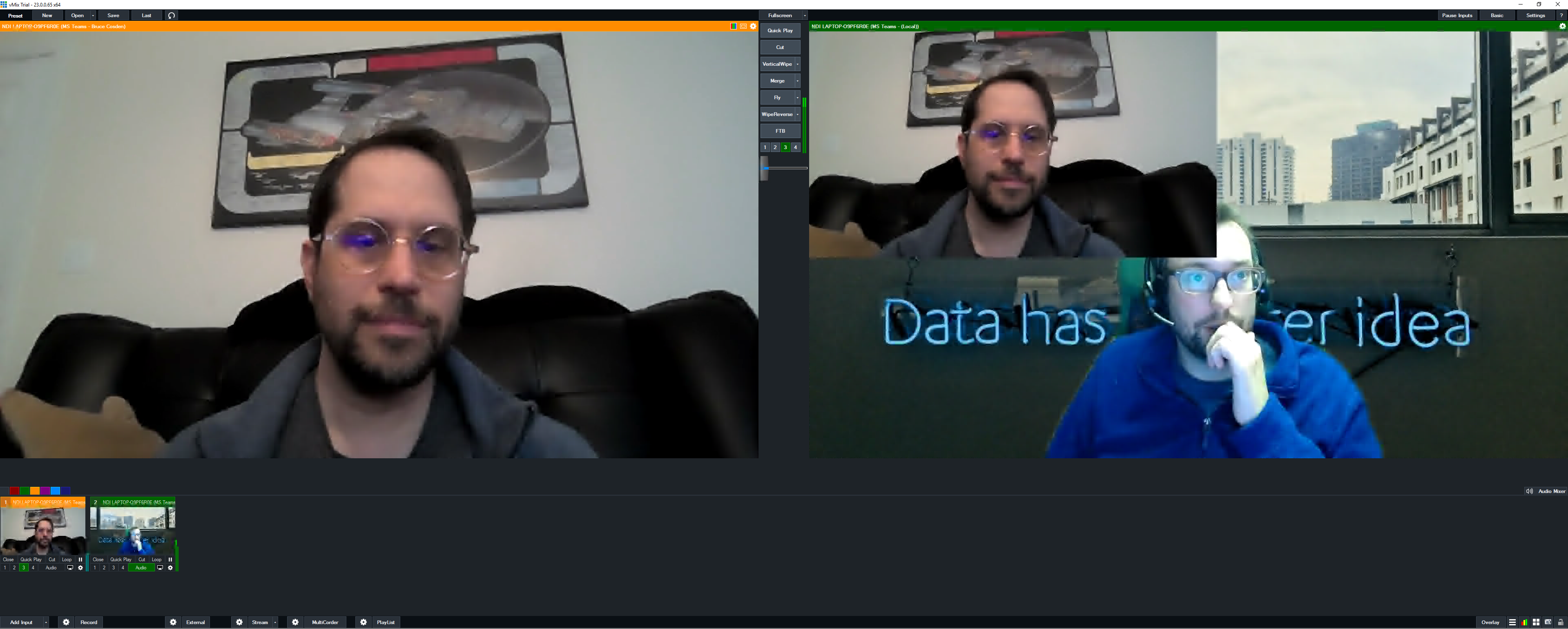

Mixing in vMix

Mixing NDI in vMix from Teams NDI

In the image above, this shows vMix in Azure. My colleague in his home office is pulled into my Teams session while I connect remotely from my home office to the same session and taking the NDI feeds into Azure to use in vMix. This is a fairly easy scenario to get setup in Azure and you can start enabling your teams right away to take advantage of these capabilities.
